Your Position:Home>Products>Generador estándar>Generator Powered by Yuchai Engine

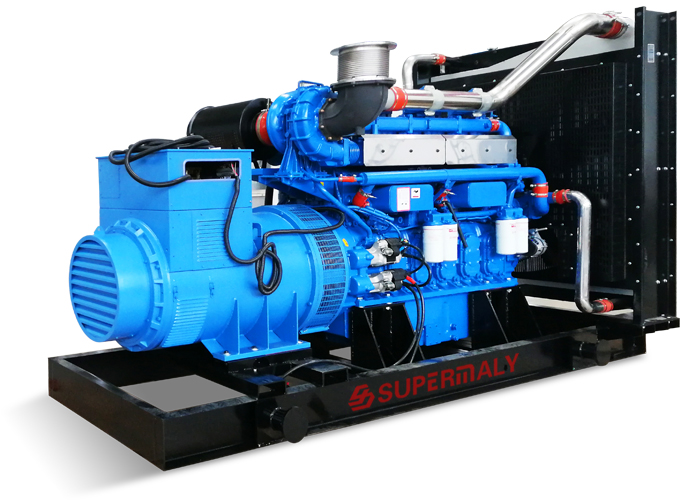

Generator Powered by Yuchai Engine

    Yuchai is with more than 40years history of manufacturing diesel generator. Which is widely using military,civil,marine etc fileds.The fuel consumption and lub oil consumption is better than the similar product in domestic.Low shaking,low noise,emissions meet to European standards.Which leading the China environment protection requirements.Strong powerful,high reliablity,which can output 110% loading within 1hrs.The quality meet or over the national related standards.With 14months or 1500 running hrs warranty is the longest in domestic.Yuchai engine have more than 2500service station and will supply the good service in time and conveniently.Feel free to use it.



    ★ warranty period:

    Genset warranty period: 12 months or accumulated run 1500 hours; whichever expires first.  If product quality problems, free charge for repair or replacement spare parts. (Consumable parts, used parts, man-made damage, lack of maintenance, that is beyond the warranty scope)

    ★ Standard:

    International standard certification ISO9001: 2008, industry standards GB / T2820.1997

    ★ Environmental conditions

    under the following conditions, the generator be able to work reliably and output rated power: Altitude: ≤1500m, if altitude above 1500m, the generator output power will be reduce, please consider this when purchasing; Ambient temperature: 40 ℃; Relative Humidity: 85%.

    ★ unit structure

    Diesel generator consists of diesel engines, alternators, common base, and control panel. Engine and alternator are connected by flexible coupling, and mounted on the common base with shock absorber. The control panel mounted on the common base alternator end by the shock absorber. It enables monitoring of electrical parameters of the generator, diesel-parameter measurement, control, parameter adjustment and alarm protection.

    ★ Delivery documentation

    Engine Operation and Maintenance Manual, spare parts manual, diesel engine parts catalog, control panel manual, diesel generator operation and maintenance manual, , diesel generator certification, www report, alternator manual, etc. .

    ★ Contact us

      Company name:Shandong Supermaly Generating Equipment Co., Ltd   Add:No. 5153 Yingqian Street, Weifang city, Shandong province, China.

      Tel:86-536-2118176  Fax:86-536-2118175

    ★ Direct injection diesel engine; Perkins Engine Co., Ltd. (Global warranty)

    ★ AC synchronous generator (single bearing, global services);

    ★ 40 ℃ -50 ℃ radiator, belt-driven cooling fan, fan safety shield;

    ★ MCCB, standard control panel; (digital display control panel supports eight languages worldwide)

    ★ steel common base with shock absorber

    ★ dry type air filter, fuel filter, lubricating oil filter, starter motor, and self-charging generator;

    ★starter battery and connecting cables;

    ★ industrial 90dB muffler and standard connecting parts

    ★ wooden case

    ★ Engine Operation and Maintenance Manual, spare parts manual, diesel engine parts catalog, control panel manual, diesel generator operation and maintenance manual, diesel generator certification, www report, alternator manual, etc. .

    ★ ATS and AMF

    ★with remote control panel

    ★ self-protection, auto-starting control panel

    ★ trailer type mobile power station

    ★ silent type mobile power station

    ★ Lub. Oil heater, diesel heater, water jacket heater

    ★ separate daily fuel tank, integrated base fuel tank

    ★ weather-proof type diesel generator (cabinet)

    ★ silent type diesel generator (cabinet)

    ★ battery charger

    Generator Powered by Yuchai Engine Main Technical Specifications:

    50HZ,COSФ=0.8, 400/230V 3P 4W 柴油机
    发电机
    Overall Size
    (mm)
    Gross Weight
    (kg)
    Genset Model
    Prime Power
    (kW/kVA)
    Standby Power
    (kW/kVA)
    Model
    Rated Power
    (kW)
    Model Rated Power
    (kW/kVA)
    SY30GF 30/37.5 33/41.2 YC4D60-D21 40 PI144J 30/37.5 1800x750x1200 920
    SY40GF 40/50 44/55 YC4D85Z-D20 55 UCI224D 40/50 1800x750x1200 950
    SY50GF 50/62.5 55/68.75 YC4D85Z-D20 55 UCI224E 50/62.5 1800x700x1200 980
    SY60GF 60/75 66/82.5 YC4A100Z-D20 70 UCI224F 60/75 1800x700x1200 1000
    SY80GF 80/100 88/110 YC6B135Z-D20 90 UCI274C 80/100 2250x800x1300 1250
    SY100GF 100/125 110/137.5 YC6B155L-D21 103 UCI274D 100/110 2300x800x1300 1500
    SY120GF 120/150 132/165 YC6B180L-D20 120 UCI274F 120/150 2300x830x1300 1600
    SY150GF 150/187.5 165/206.25 YC6A230L-D20 155 UCI274G 150/187.5 2400x970x1500 2100
    SY200GF 200/250 220/275 YC6M350L-D20 235 UCD274K 200/250 3100x1050x1750 2750
    SY250GF 250/312.5 275/343.75 YC6MK420L-D20 281 HCI444ES 250/312.5 3200x1150x1750 3000
    SY300GF 300/375 330/412.5 YC6MJ480L-D20 321 HCI444FS 300/375 3200x1200x1750 3100
    SY360GF 360/450 396/495 YC6T600L-D22 401 HCI544C 400/500 3400x1500x1970 3900
    SY400GF 400/500 440/550 YC6T660L-D20 485 HCI544C 400/500 3500x1500x1970 4000
    SY500GF 500/625 550/687.5 YC6TD780L-D20 572 HCI544FS 500/625 3500x1500x1970 4500
    SY600GF 600/750 660/825 YC6C1020L-D20 680 LVI634B 600/750 4500x1800x2500 7500
    SY640GF 640/800 704/880 YC6C1020L-D20 680 LVI634C 640/800 4500x1800x2500 7500
    SY800GF 800/1000 880/1100 YC6C1320L-D20 880 LVI634E 800/1000 4800x1900x2500 7500
    SY1000GF 1000/1250 1100/1375 YC12VC1680L-D20 1120 LVI634G 1000/1250 5000x2000x2500 9800
    SY1200GF 1200/1500 1320/1650 YC12VC2070L-D20 1380 PI734C 1200/1500 5300x2080x2500 10000
    SY1320GF 1320/1650 1452/1815 YC12VC2270L-D20 1520 PI734D 1320/1650 5500x2180x2550 11000
    SY1500GF 1500/1875 1650/2062.5 YC12VC2510L-D20 1680 PI734E 1500/1875 5600x2280x2600 12000
